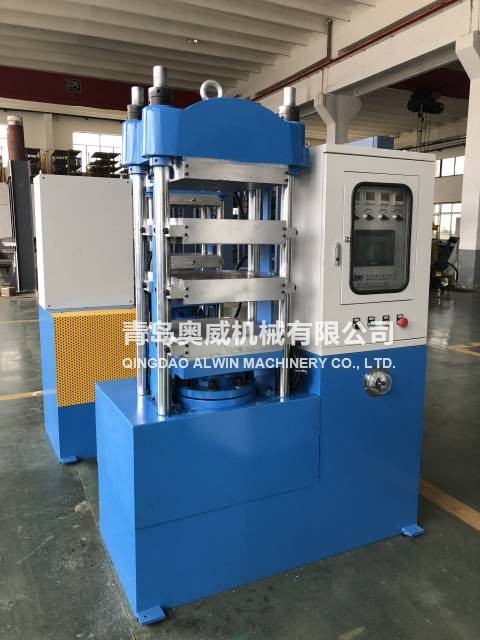

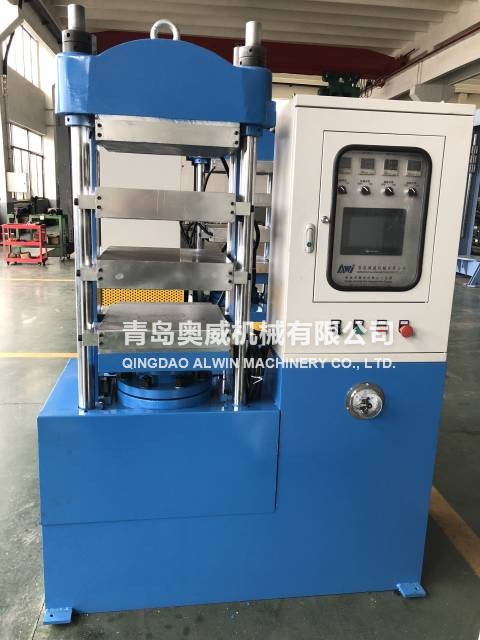

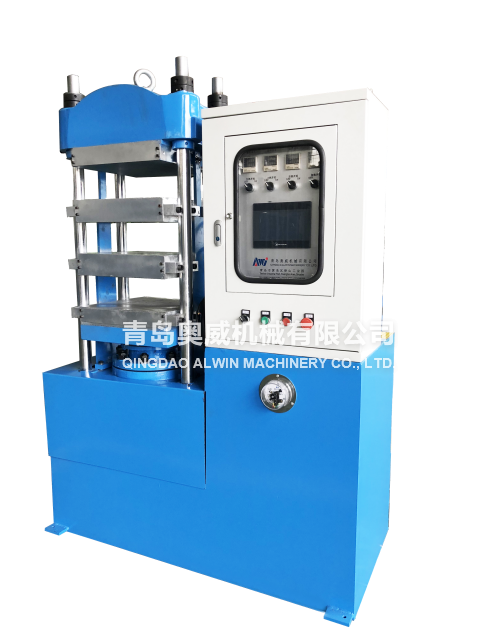

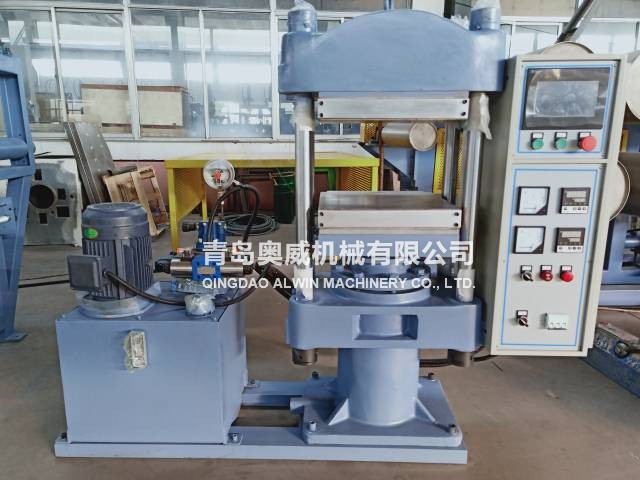

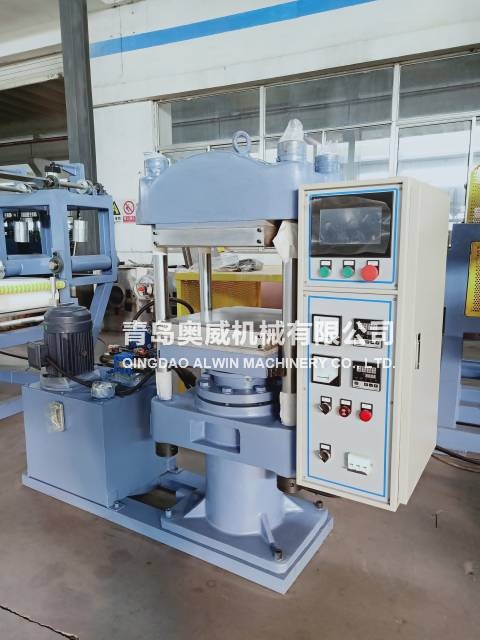

The machine is main device which is used in pressing and molding various rubber model goods and non model goods,it also can be used in pressing various heat solidify plastic and sparkling rubber and plastic goods.It has independent drive framework and electrical system,adopts button to centralized control.Working pressure and heating temperature can be adjusted in the range.
產(chǎn)品型號 Type | XLB-DQ 300×300×2 | XLB-DQ 350×350×2 | XLB-DQ 400×400×2 | XLB-DQ 500×500×2 | XLB-DQ 600×600×2 | XLB-DQ 750×750×2(4) | |
公稱合模 Total pressure(mm) | 0.25 | 0.25 | 0.50 | 0.50 | 1.00 | 1.60 | |
熱板規(guī)格 Heating plate size（mm） | 300×300 | 350×350 | 400×400 | 500×500 | 600×600 | 750×850 | |
熱板間距 Plate space（mm） | 125 | 125 | 125 | 125 | 125 | 125 | |
工作層數(shù) Working layer number | 2 | 2 | 2 | 2 | 2 | 2(4) | |
柱塞行 Piston stroke(mm) | 250.00 | 250 | 250 | 250 | 250 | 250(500) | |
熱板單位面積壓力 Plate pressure(Mpa) | 3.1 | 3.1 | 3.1 | 3.1 | 2.8 | 2.5 | |
主電機功率 Main motor power | 1.50 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | |
外形尺寸 Overall size | 長(L) | 1100 | 1100 | 1300 | 1300 | 1410 | 1900 |
| 寬(W) | 500 | 500 | 550 | 550 | 680 | 950 | |
| 高(H) | 1100 | 1200 | 1500 | 1500 | 1750 | 2028 | |
重量 Weight（kg） | 500 | 750 | 1300 | 1500 | 2500 | 5000(6000) | |
